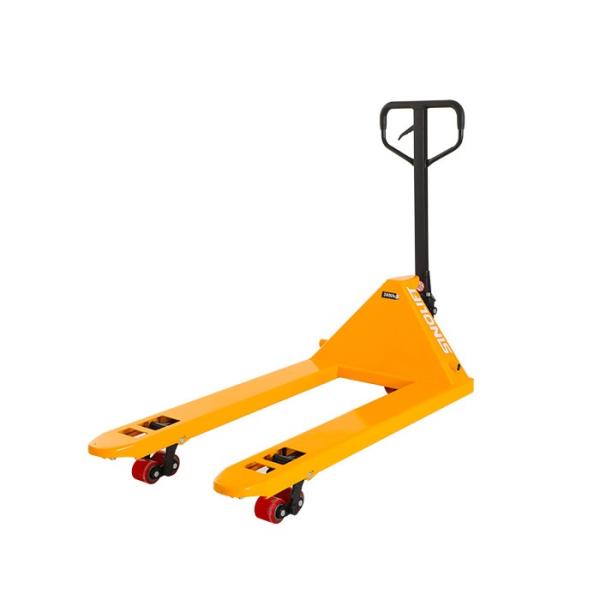

DF Series Hand Hydraulic Pallet Truck Loading Capacity 3000Kg

Name: DF Series Hand Hydraulic Pallet Truck Loading Capacity 3000Kg
Brand: Sinolift
Price: 1 USD

Brand Name : Sinolift

Model Number : DF

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 5000 sets/mouth

Delivery Time : 15 days

Packaging Details : Sandard Export Package

Product Name : DF Series Hand Hydraulic Pallet Truck Loading Capacity 3000Kg

Load Capacity : 2500-3000Kg

Lowered Fork Height : 85mm

Max Height : 200mm

Lifting Height : 115mm

Lenght of Forks : 800/900/1070/1100/1150/1220mm

Width of Forks : 160X60mm

Net Weight : 85kg

Load Wheel : Ø80x93mm

Steer Wheel : Ø200x50mm

Warranty : 1 year

After Service : On-line service,Spare parts

Contact Now

Feature:

· The oil pump body is made by way of welding the prefabricated parts together first, then machining the welded body.

· Ergonomic Large Rubber handle with three control lever.

* Special lowering valve to control the trucks durable

· Chrome piston and ram for smooth operation and prevents excessive wear on the pump & seal.

· Excellent turning angle of 180 degree facilities.

· Number of pump strokes-10. Lift height per stroke:11mm.

* Spray plastic painting surface

· Option:nylon wheel,polyurethane wheel,rubber wheel single fork roller or tandem fork roller.

· Remark: Special size for width and length can be made according to customer's requirement.

Specification:

Model			DF25		DF30
Lifting Capacity		kg	2500		3000
Lowered Fork Height H1		mm	85	75	85	75
Max Height of fork H2		mm	200	190	200	190
Lifting Height h		mm	115	115	115	115
Lenght of Forks L1		mm	800/900/1070/1100/1150/1220		800/900/1070/1100/1150/1220
Width of Forks B1		mm	160x60		160x60
Load Wheel	Single	mm	Ø80x93	Ø74*93	Ø80x93	Ø74*93
	Double	mm	Ø80x70	Ø74*70	Ø80x70	Ø74*70
Steer Wheel		mm	Ø200x50	Ø180x50	Ø200x50	Ø180x50
Overall Dimensions	Length L2	mm	1180/1280/1450/1480/1530/1600		1180/1280/1450/1480/1530/1600
	Width W1	mm	450/520/550/685		450/520/550/685
	Height H	mm	1198		1230
Self Weight		kg	72-85		72-85
