DT500 Operational Oil Drum Lifter Manual Loading Capacity 500Kg

Shanghai Sinolift Mechanical and Electrical Equipment Co., Ltd.
Contact Now

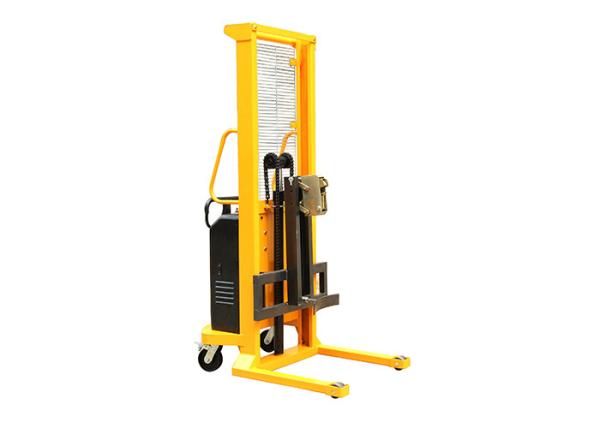

DT500 Operational Oil Drum Lifter Manual Loading Capacity 500Kg

Brand Name : Sinolift

Model Number : DT500

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram

Supply Ability : 5000 sets/mouth

Delivery Time : 15 days

Packaging Details : Sandard Export Package

Product Name : DT500 Operational Oil Drum Lifter Manual Loading Capacity 500Kg

Rated Capacity : 500Kg

Max. Lifting Height : 1600mm

Acceptable Drum Type : steel ,plastic,fiber

Powered Lifting : Yes

Drum Tilting : without dumping device

With Weighing Scale : Yes

Turning Radius : 1750mm

Lifting Motor Power : 1.5KW

Battery : 12V/120Ah

Overall Size : 1200x850x2060mm

Net Weight : 228kg

Contact Now

Feature:

Integrated functions of transporting, stacking and weighting.

Use good-quality hydraulic pump unit to provide strong driving force; maintenance-free battery provides durable power supply.

Gantry made of special-rolled industrial-manufactured C-type steel which is strong and safe.

Eagle-gripper structure, fit for operating with steel oil drum and PE oil drum;

Excellent-quality oil cylinder, high lifting speed, maximum lifting height:1600mm

Oil drum carrier is featured by its simple-and-light-structure outline design which enables single one man complete transporting, stacking and loading & unloading.

Applicable for chemical plants and food plants for transferring, loading & unloading and compounding materials of fluids, such as dyes, paintings, adhesives, petrol and edible oils, etc.

With electronic weighting device.

Specification:

Model DT500
Rated Capacity kg 500
Max. Lifting Height mm 1600
Acceptable Drum Type steel ,plastic,fiber
Powered Lifting yes/no yes
Drum Tilting (electric/manual) without dumping device
With Weighing Scale yes/no yes
Lifting Speed mm/s 120
Load Rollers Size mm Ø80x55
Steering Wheel Size mm Ø150x50
Size Between Legs(Inner/Outer) mm 640/800
Leg Length mm 630
Turning Radius mm 1750
Lifting Motor Power KW 1.5
Battery V/AH 12/120
Charger for Stacker V 12
Charger for Weighing Scale V 6
Overall Size(LxWxH) mm 1200x850x2060
Net Weight kg 228
